Rg6 305m CCTV Camera

Description

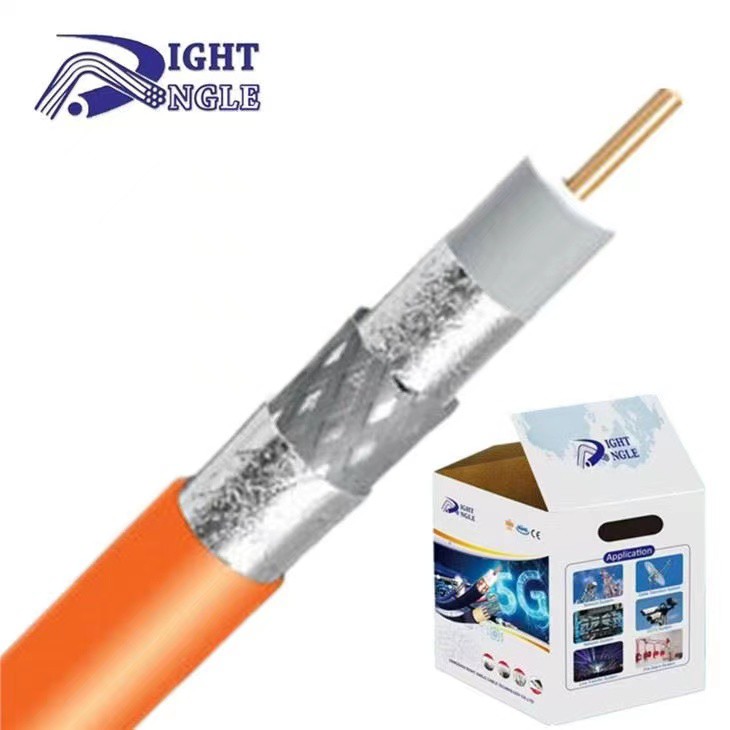

The RG6 cable is made of a foil shield and a braided aluminum shield. They have better insulation properties.

Chat Now Send Inquiry

Product Details

Download specification

Inquiry

Structural parameters
Project material diameter (mm)
1. Inner conductor bare copper wire 1.02
Insulator foam polyethylene 4.57
3. Outer conductor self-adhesive aluminum foil+aluminum magnesium wire woven Nom. 5.22
4. Sheath polyvinyl chloride (PVC)
Polyethylene (PE) 6.91
Electrical performance parameters
Capacitance (pF/m) 52
Impedance (ohm) 75
Transmission rate (%) 85
Attenuation shield (>dB) 80
Maximum operating voltage (KVrms) 3.0
Return loss (≥ dB) VHF UHF 20 20
Mechanical and environmental performance
Operating temperature range (℃) PVC PE - 25 to+70
-40 to+80
ROHS Environmental Compliance
attenuation
Frequency (MHz) attenuation (dB/100m)
5 1.95
50 4.79
211 8.96
400 9.95
550 15.85
750 18.87
865 19.80
1000 21.50
