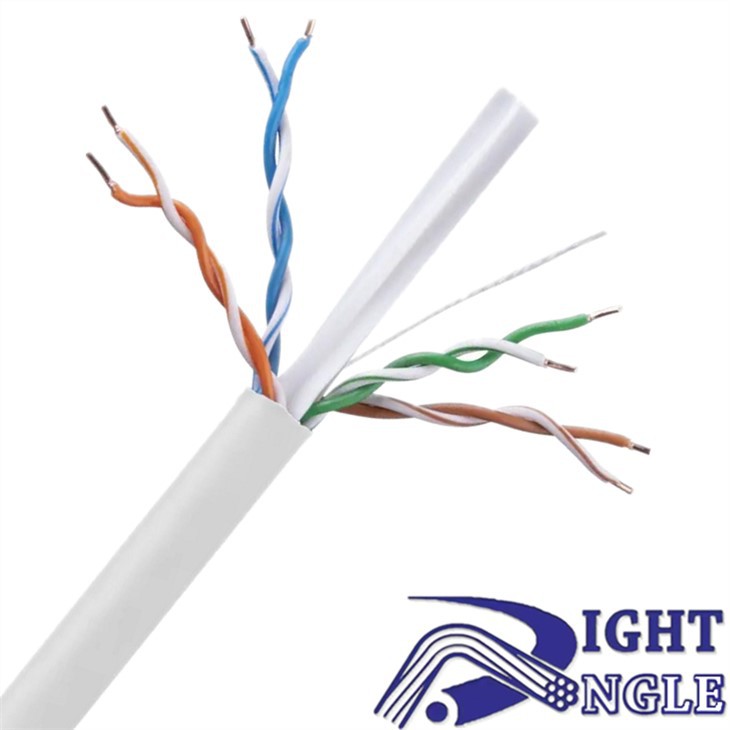

UTP Cat6 Ethernet Cable

UTP Cat6 Ethernet Cable


UTP CAT6 Lan Cable/UTP CAT6 Network Cable/UTP CAT6 Ethernet Cable is upgraded from 100MHz transmission frequency of Cat5E Cable to 250MHz frequency, so the transmission speed is also increased to 1000Mbps. If the transmission distance is less than 55 meters, the transmission speed can even reach...


Product Details

Download specification


How to distinguish between good and bad cables:
1) Copper material: High-quality cables use high-purity oxygen-free copper, the copper core is bright in color, and the surface of poor copper wires is dull.
2) Plastic: The plastic uses high-quality virgin plastic, which has good bending performance and will not produce texture when bending the cable. Poor recycled plastic will have obvious texture after bending several times, and break after bending many times.
3) Foot square: Copper is a precious metal. If you lose a little in the diameter of copper, you can reduce a lot of raw material costs. In this case, you need to use a micrometer to measure the diameter of copper wire. If you don't have a micrometer, an easier way is to take the whole coil of wire and weigh it to see if it's much lighter than a good quality cable. Or you can refer to the nominal weight given by the factory.


UTP Cat6 Ethernet Cable is a type of network cable commonly used for transmitting data across computer networks. This cable has been designed to meet and exceed the requirements of the current networking standards, offering high-speed data transmission and exceptional network performance. This cable is characterized by its copper wire construction and UTP (unshielded twisted pair) design. In this article, we will describe the features, benefits, and applications of UTP Cat6 Ethernet Cables.



UTP Cat6 Ethernet Cable is a type of cable that has been designed to support high-speed data transmission, making it suitable for modern-day network applications. Here are some of the key features of UTP Cat6 Ethernet Cable:

1. Copper Wire Construction - UTP Cat6 Ethernet Cable is made of copper wire, which is known for its excellent conductivity and durability. Copper wire also helps to reduce signal loss and ensure a stable, reliable connection.

2. UTP (Unshielded Twisted Pair) Design - UTP Cat6 Ethernet Cable features a twisted pair design, meaning that two wires are twisted together to reduce crosstalk and electromagnetic interference.

3. High-Speed Data Transmission - UTP Cat6 Ethernet Cable is capable of transmitting data at speeds up to 10 Gigabit per second (Gbps), making it ideal for high-bandwidth applications like video streaming or online gaming.

4. Compatibility - UTP Cat6 Ethernet Cable is backward compatible with Cat5 and Cat5e cables, making it easy to upgrade existing networks.



UTP Cat6 Ethernet Cable offers various benefits over other types of network cables. Here are some of the key benefits of UTP Cat6 Ethernet Cable:

1. Faster Data Transmission - UTP Cat6 Ethernet Cable can transmit data at higher speeds than its Cat5 and Cat5e counterparts, making it suitable for high-bandwidth applications.

2. Reduced Signal Loss - The copper wire construction of UTP Cat6 Ethernet Cable helps to reduce signal loss, ensuring a stable, reliable connection.

3. Improved Network Performance - The UTP design of UTP Cat6 Ethernet Cable reduces crosstalk and electromagnetic interference, leading to improved network performance.

4. Easy to Install - UTP Cat6 Ethernet Cable is easy to install and requires no special tools, making it ideal for both DIY and professional installations.



UTP Cat6 Ethernet Cable can be used in a variety of network applications, including:

1. Data Centers - UTP Cat6 Ethernet Cable is commonly used in data centers to provide high-speed connectivity between servers, switches, and other networking devices.

2. Home Networks - UTP Cat6 Ethernet Cable can be used to provide high-speed connectivity between computers, gaming consoles, and other connected devices in home networks.

3. Offices - UTP Cat6 Ethernet Cable is ideal for connecting computers, printers, and other networking devices in office networks.

4. Audio/Video Applications - UTP Cat6 Ethernet Cable can be used to transmit high-quality audio and video signals, making it suitable for home theater systems, video conferencing, and other AV applications.



Product Specification



BC ( Customized: CCA /CCC )


0.57 mm ± 0.02 mm

Wire Gauge

23 AWG





1.02 mm ± 0.1 mm





4.5 mm ± 0.2mm


0.4 mm ± 0.02mm

Rip Cord




500 D




(Customized optional: PE/PVC+PE/LSZH)


6.0 mm ± 0.3 mm



Single package

Easy pull box

Package length

305m (Optional custom length)

Outer package

Carton box (2×Easy pull box)

Waterproof packaging



Test Data

Tensile Strength

Sheath≥13.5 MPa, insulation≥16 MPa

Elongation at Break

Sheath≥150%, insulation≥300%

Installation Bending Radius

>8 times of outer cable diameter

Conductor Elongation at Break


Shrinkage of Insulation


Low Temperature Bending Test

No cracking

Heat Shock Test

No cracking

Operating Temperature

–20°C to +60°C (–4°F to 140°F)

Storage Temperature Humidity

–10°C to +40°C (14°F to 104°F), <60% (RH)


Certifications and Standards

Vertical Fire Propagation Test

Comply with IEC 60332-1-2



Executive Standards

Q/DXJ 067-2019, EN50575-2014
