UTP Cat6 Network Cable

UTP Cat6 Network Cable


UTP CAT6 Lan Cable/UTP CAT6 Network Cable/UTP CAT6 Ethernet Cable is upgraded from 100MHz transmission frequency of Cat5E Cable to 250MHz frequency, so the transmission speed is also increased to 1000Mbps. If the transmission distance is less than 55 meters, the transmission speed can even reach...


Product Details

Download specification


Our advantage:

1. Strong signal transmission ability Environmentally friendly PVC sheath with bright color on the surface. The wire core is twisted with high density, and the signal transmission ability is strong.

2. Low resistance The resistance of a 300-meter box is about 28.2. If it is an all-copper network cable made of ordinary recycled copper, the resistance will be high, the color of the wire core will be dark yellow, and the signal transmission ability will be poor, and the transmission will be unstable.

3. Signal transmission is stable. The wire core is made of 99.99% oxygen-free copper core, which has good electrical performance, low crosstalk and low resistance, and is suitable for various monitoring network wiring applications.


UTP Cat 6 (Unshielded Twisted Pair Category 6) network cable is a type of twisted-pair cable that is used primarily for Ethernet networking. This type of cable is designed to be faster and more reliable than earlier versions of networking cables, such as Cat 5 and Cat 5e. The UTP Cat 6 cable is used to connect devices to a local area network, whether in homes, offices or data centers.

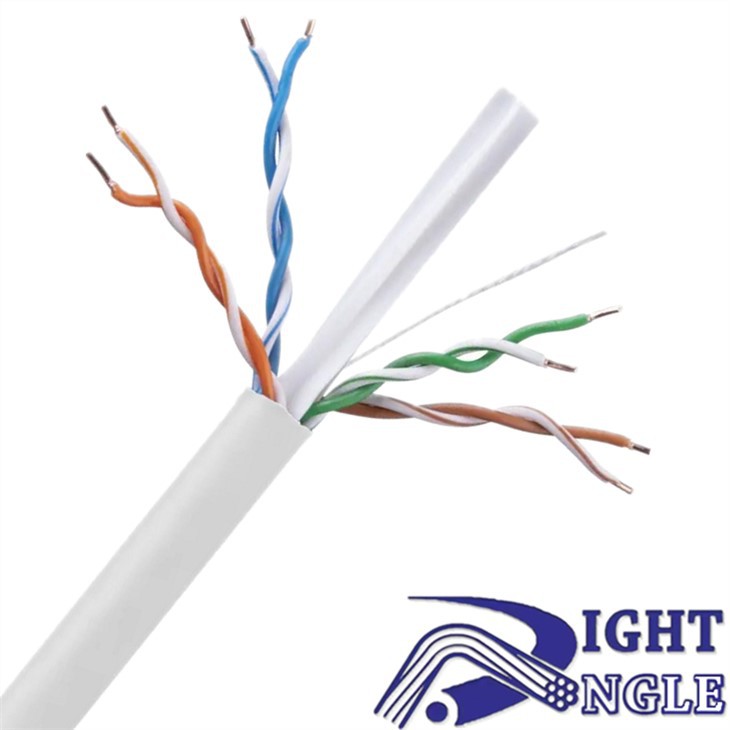

The cable is composed of four pairs of twisted wires, which are color-coded to help users connect them properly. The pairs of wires are twisted together in a specific pattern to reduce electromagnetic interference and crosstalk between the pairs. The cable is unshielded, meaning that there is no metal layer surrounding the pairs of wires to protect them from interference.


The UTP Cat6 cable has a maximum bandwidth of 250 MHz, which makes it suitable for transmitting large amounts of data quickly and efficiently. This high bandwidth allows for fast download and upload speeds as well as smooth streaming of multimedia content. The cable is also backward compatible with Cat 5 and Cat 5e cables, so it is possible to use UTP Cat 6 cables in networks that have these older cables installed.


In terms of length, UTP Cat 6 cables can be run up to a maximum distance of 328 feet or 100 meters before signal degradation occurs. This means that the cable can be used to connect devices that are located far apart without sacrificing speed or quality.


UTP Cat6 cables are available in different lengths, ranging from 1 foot to 1000 feet, and are sold in colors such as blue, green, yellow, and black. The length of the cable needed depends on the location and size of the network.


UTP Cat6 cables are easy to install and maintain. They are designed to be plugged directly into devices without the need for adapters or special equipment. The cable can be terminated with an RJ45 connector, which is the most common type of connector for Ethernet networks.


When installing UTP Cat6 cables, it is important to observe proper cable management. The cables should be neatly organized and labeled to make it easy to trace them in case of a problem. Additionally, the cables should be kept away from sources of interference, such as fluorescent lighting, power cables, and other electronics.



Product Specification



BC ( Customized: CCA /CCC )


0.57 mm ± 0.02 mm

Wire Gauge

23 AWG





1.02 mm ± 0.1 mm





4.5 mm ± 0.2mm


0.4 mm ± 0.02mm

Rip Cord




500 D




(Customized optional: PE/PVC+PE/LSZH)


6.0 mm ± 0.3 mm



Single package

Easy pull box

Package length

305m (Optional custom length)

Outer package

Carton box (2×Easy pull box)

Waterproof packaging



Test Data

Tensile Strength

Sheath≥13.5 MPa, insulation≥16 MPa

Elongation at Break

Sheath≥150%, insulation≥300%

Installation Bending Radius

>8 times of outer cable diameter

Conductor Elongation at Break


Shrinkage of Insulation


Low Temperature Bending Test

No cracking

Heat Shock Test

No cracking

Operating Temperature

–20°C to +60°C (–4°F to 140°F)

Storage Temperature Humidity

–10°C to +40°C (14°F to 104°F), <60% (RH)


Certifications and Standards

Vertical Fire Propagation Test

Comply with IEC 60332-1-2



Executive Standards

Q/DXJ 067-2019, EN50575-2014
