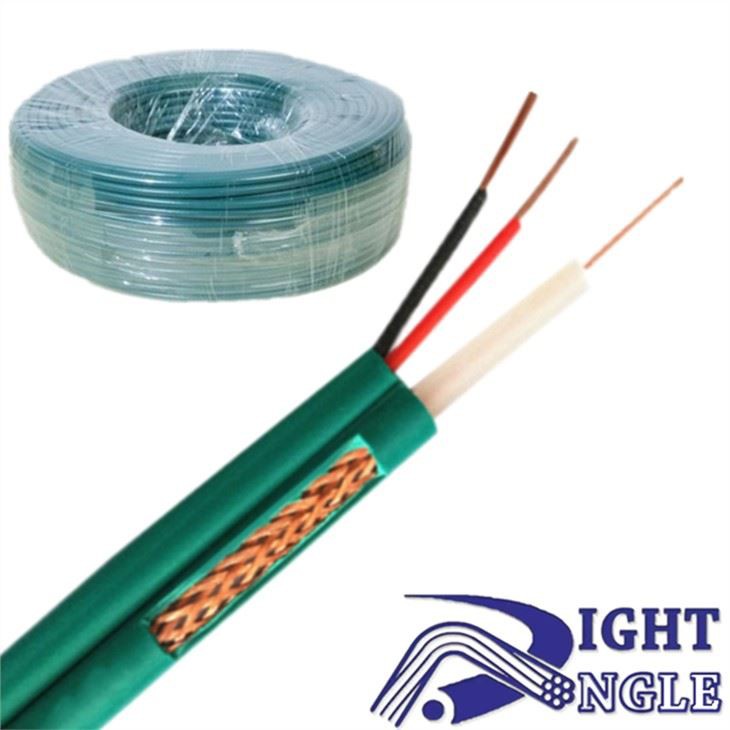

KX7+2C Cable

Description

KX7 + 2C, CCTV Cable is used for the data transmission and function of CCTV camera. The addition of power cord on the basis of KX7 coaxial cable will reduce the repeated wiring steps when installing CCTV camera, optimize the installation method and improve the installation efficiency....

Chat Now Send Inquiry

Specification Download

Product Details

Download specification

Inquiry

KX7+2C Cable Description

KX7+2C Cable is a high-quality and safe cable that is manufactured by our company, which specializes in the production of cables. With our expertise in the cable industry, we have developed this cable to meet the needs of our customers in various industries.

The KX7+2C Cable is a two-conductor shielded cable that is suitable for use in electronic applications where low capacitance and low noise are necessary. It is designed to provide excellent performance in applications such as audio and video equipment, instrumentation, control systems, and other high-frequency applications. The cable has a solid copper conductor and features a polyethylene insulation, which provides excellent dielectric strength.

One of the key characteristics of the KX7+2C Cable is its excellent quality. We use only high-quality materials and manufacturing processes to ensure that our cable meets the highest standards of quality and reliability. This means that our customers can rely on our cables to perform consistently and effectively over time.

In addition to its quality, the KX7+2C Cable is also very safe to use. It is designed to comply with all relevant safety standards, and we conduct rigorous testing to ensure that it meets these standards. This means that our customers can have peace of mind knowing that they are using a safe and reliable product.

Another important feature of the KX7+2C Cable is its high level of customization. We understand that our customers have unique needs and requirements, and we are committed to meeting these needs through our custom cable design services. Our team of experts works closely with our customers to design and manufacture custom cables that meet their specific needs, ensuring that they get the cables they need to get the job done right.

Overall, the KX7+2C Cable is a high-quality, safe, and reliable cable that is designed to meet the needs of our customers in a wide range of industries. With our commitment to quality, safety, and customization, we are confident that we can provide our customers with a product that meets their needs and exceeds their expectations. If you have any cable needs, please don't hesitate to contact us. We are always ready to help you find the right cables for your application.

Construction

Conductor	Material	BC
Conductor	Diameter	7 x ( 0.2mm ± 0.02 mm )
Insulation	Material	SPE
Insulation	Diameter	3.7 mm ± 0.2 mm
AL Foil	Construction	With Foil
	Material	APG
	Width	14 mm
	thickness	> 0.024 mm
	Overlap Rate	≥ 20%
Braid	Material	BC / CCA
	Diameter	0.12 mm
	Braid Coverage	60% - 98%
Jacket	Material	PVC
Jacket	Diameter	6.1 mm ± 0.3 mm
Power Conductor	Material	BC
Power Conductor	Diameter	24 x ( 0.2 mm ± 0.02 mm )
Power Insulation	Material	HDPE
Power Insulation	Diameter	2 x ( 1.65 mm ± 0.02 mm )
Power Jacket	Material	PVC
Power Jacket	Diameter	3.5 mm ± 0.3 mm

Packing

Package length	100m / 300m / 500m
	Customized
Box type	Ordinary / Waterproof
	Customized optional

Test Data

Dielectric Strength	Not breakdown with 2kV DC for 1 min
Sheath Strength	Not breakdown with 3kV
Characteristic Resistance	75Ω ± 5Ω
Insulation Resistance	5000MΩ/km
Elongation at Break (Wire)	≥15%
Elongation at Break (Sheath)	≥150%
Low Temperature Bending	Not cracked
Thermal Shock	Not cracked
Operating Temperature	–20°C to +60°C (–4°F to 140°F)
Storage Temperature	–10°C to +40°C (14°F to 104°F)
