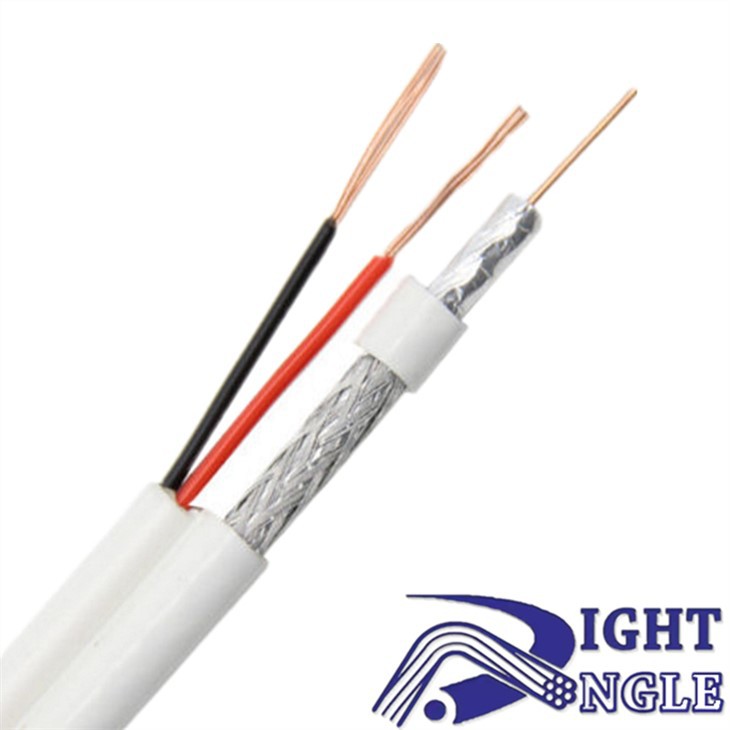

RG6 with Power Cable

RG6 with Power Cable: An Overview

As our reliance on technology increases, so does our need for high-quality cables to ensure that our devices function accurately and efficiently. Two commonly used cables in modern households are RG6 coaxial cables and power cables. RG6 with power cable combines these two cables into one, providing a convenient and efficient solution to cable management. In this article, we will provide an overview of RG6 with power cable, including its features, benefits, and applications.

Features of RG6 with Power Cable

RG6 with power cable is a dual-purpose cable that combines a coaxial cable and a power cable into one jacket. This hybrid cable features the following characteristics:

1. High-quality RG6 Cable: RG6 is a type of coaxial cable widely used for cable and satellite television broadcasts. It has a copper conductor, a dielectric insulator, and a braided shield that protect the signal from interference.

2. Power Cable: The power cable is typically used to provide power to electronic devices. It typically has two or three conductors—a live wire, a neutral wire, and a ground wire—that transmit electrical power from an outlet to a device.

3. PVC Insulation: The jacket of the RG6 with power cable is made of polyvinyl chloride (PVC), which provides excellent insulation and protection against damage.

4. Conductor: The RG6 with power cable has a solid copper conductor that minimizes signal loss and ensures reliable communication.

Benefits of RG6 with Power Cable

RG6 with power cable offers several benefits over traditional cables. Some of these benefits include:

1. Convenience: With RG6 with power cable, there is no need for two separate cables for power and data. This means fewer cables to manage and a neater installation.

2. Cost-Effective: RG6 with power cable is a cost-effective solution that reduces the need for additional cables.

3. Space-Saving: RG6 with power cable reduces the clutter of cables and helps to free up space in tight installations.

4. Versatility: RG6 with power cable is suitable for a wide range of applications, including satellite and cable television, CCTV, video surveillance, and internet connectivity.

Applications of RG6 with Power Cable

RG6 with power cable is a versatile cable that is used in a variety of applications, including:

1. Cable and Satellite Television: RG6 with power cable is widely used in the cable and satellite television industry to transmit audio and video signals, as well as to provide power to set-top boxes and other devices.

2. CCTV and Video Surveillance: RG6 with power cable is often used in CCTV and video surveillance systems to provide power to cameras and transmit data.

3. Internet Connectivity: RG6 with power cable can also be used to provide internet connectivity in residential and commercial buildings.



Construction

Conductor	Material	CCS
	Diameter	1.02mm ± 0.02 mm
	Wire Gauge	18 AWG
Insulation	Material	FPE
	Diameter	4.57 mm ± 0.2 mm
AL Foil	Construction	With Foil
	Material	AP
	Width	18 mm
	thickness	> 0.024 mm
	Overlap Rate	≥ 20%
Braid	Material	AL
	Diameterr	0.12 mm
	Braid Coverage	60% - 98%
Jacket	Material	PVC
	Diameter	7.0 mm ± 0.5 mm
Power Conductor	Material	CCA
	Diameter	7 x ( 0.3 mm ± 0.02 mm )
Power Insulation	Material	PE
	Diameter	2 x ( 1.6 mm ± 0.02 mm )
Power Jacket	Material	PVC
	Diameter	3.2 mm ± 0.3 mm



Packing

Package length	100m / 300m / 500m
	Customized
Box type	Ordinary / Waterproof
	Customized optional



Test Data

Dielectric Strength	Not breakdown with 2kV DC for 1 min
Sheath Strength	Not breakdown with 3kV
Characteristic Resistance	75Ω ± 5Ω
Insulation Resistance	5000MΩ/km
Elongation at Break (Wire)	≥15%
Elongation at Break (Sheath)	≥150%
Low Temperature Bending	Not cracked
Thermal Shock	Not cracked
Operating Temperature	–20°C to +60°C (–4°F to 140°F)
Storage Temperature	–10°C to +40°C (14°F to 104°F)



Certifications and Standards

Certification	CPR Eca
Executive Standards	Q/DXJ 194-2020



Technical Test [Attenuation @68°F(20°C)]

Frequency(MHZ)	Maximum(dB/100ft)	Maximum(dB/100m)
5	0.58	1.90
55	1.60	5.25
187	2.85	9.35
300	3.55	11.64
450	4.40	14.43
600	5.10	16.73
750	5.65	18.54
865	6.10	20.01
1000	6.55	21.49
1450	7.98	26.16
1800	8.46	27.73
2250	10.38	34.03
3000	11.44	37.50
