50 Ohm Bnc Male Straight RF Coaxial Connector The Bnc Connector Crimp RG58 SYV50-3 Cables

50 Ohm Bnc Male Straight RF Coaxial Connector The Bnc Connector Crimp RG58 SYV50-3 Cables

Description

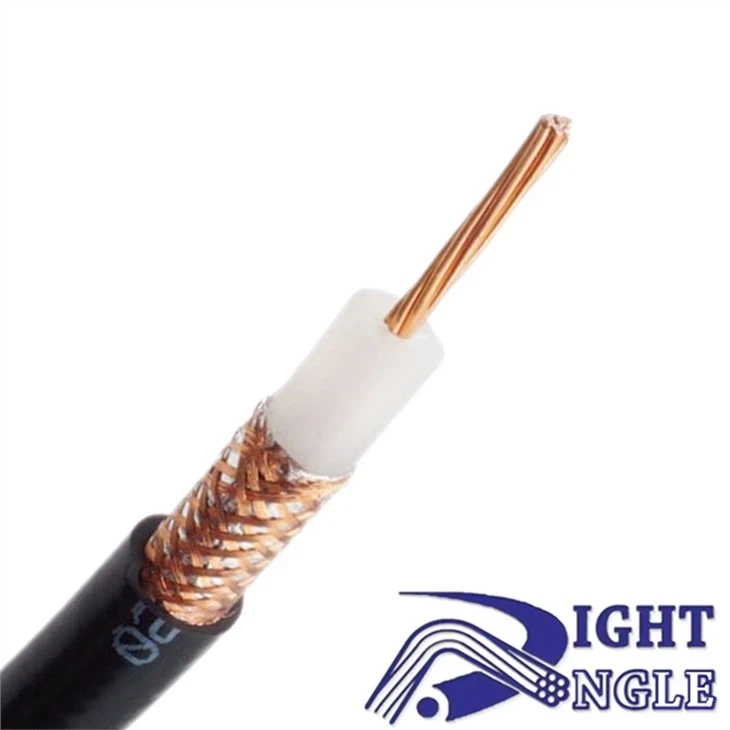

RG58 coaxial cable conforms to the standard: M17/28-rg58, maximum operating frequency: dc-1ghz, RG58/u is used to provide high-speed and high-precision data transmission, common applications include security systems, computer networks, access control and home automation applications. RG-58 coaxial cables are often used to connect wireless devices and antennas in wireless networks, and are also commonly used in automotive wiring harnesses;

Share:

Product Details

Download specification

Inquiry

Order Number
250322
Product Name
BNC-C-J-3
VSWR
≤1.3
Gender
male

Contact resistance
Center conductor
≤1.5mΩ
Outer conductor
≤1mΩ
Rrequency Range
DC-4GHZ
Index Of Characteristic
50Ω
Dielectric Strength
1500V
Insulation Resistance
≥5000MΩ
Durability
≥500 times
Temperture range
-45°~+125°C
Suitable cables
RG58/SYV50-3
