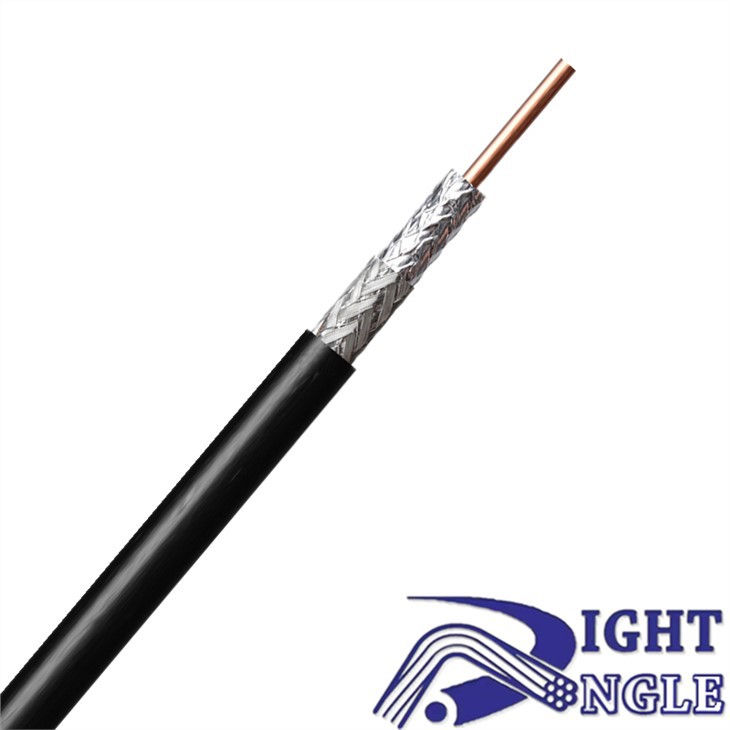

RG7 Coaxial Cable

Rg7 coaxial cable has excellent performance in low loss at high frequency for cable television, satellite television and cable modems. Hangzhou right angle Cable Technology Co., Ltd. specializes in producing Rg7 coaxial cable. Mass production helps you reduce costs.



Hangzhou right angle Cable Technology Co., Ltd. can mass produce Rg7 coaxial cable. Because it is a factory, the price is lower and the batch is more cost-effective. Welcome to our price consultation.



RG7 Coaxial Cable is a high-performance coaxial cable that is designed to transmit high-frequency signals with minimum loss and interference. This cable is commonly used in telecom, broadcasting, and cable TV applications where high-quality transmission is required.



The RG7 Coaxial Cable is designed to operate at a frequency range of 0 to 2.5 GHz with an impedance of 50 ohms. This cable has a solid copper center conductor, which provides excellent electrical conductivity and ensures that the signal remains stable throughout the transmission process. The copper center conductor is surrounded by a dielectric material made of a solid polyethylene foam that provides insulation and prevents the signal from being lost.



The RG7 Coaxial Cable also features a braided copper shield that is designed to provide excellent RF shielding and minimize signal interference. This shield is made of high-quality materials that provide exceptional durability and long-term performance. Additionally, this cable comes with a PVC jacket that protects it from external damage and provides added durability.



One of the unique features of the RG7 Coaxial Cable is its low loss and low attenuation characteristics. These characteristics make it ideal for long-distance transmission applications, where signal loss can be a major issue. The low loss and low attenuation also allow for higher signal strength and better signal quality over long distances.



Another important feature of the RG7 Coaxial Cable is its weather resistance. This cable is designed to withstand harsh weather conditions, making it ideal for outdoor applications where the cable will be exposed to the elements. Additionally, the cable's outer jacket is designed to resist abrasion and cut-through, providing even more durability and protection.



The RG7 Coaxial Cable also comes with different connectors and adapters that make it compatible with various types of equipment. These connectors and adapters include BNC, N, and SMA connectors, among others. The variety of connectors and adapters allows this cable to be used in different applications, including wireless, satellite, and radar systems.



When it comes to installation, the RG7 Coaxial Cable is easy to install and maintain. The cable's connectors are designed to be easy to connect and disconnect, making the installation process hassle-free. Additionally, this cable is easy to clean and maintain, which helps to ensure that it continues to perform at its best over time.



Construction

Conductor	Material	BC
	Diameter	1.29mm ± 0.02 mm
	Wire Gauge	16 AWG
Insulation	Material	FPE
	Diameter Diameter	5.72 mm ± 0.2 mm
AL Foil	Construction	With Foil
	Material	AP
	Width	22 mm
	thickness	> 0.024 mm
	Overlap Rate	≥ 20%
Braid	Material	AL
	Diameterr	0.12 mm
	Braid Coverage	60% - 98%
Jacket	Material	PVC
	Diameter	8.1 mm ± 0.5 mm



Packing



Package length	100m / 300m / 500m
	Customized
Box type	Ordinary / Waterproof
	Customized optional



Test Data

Dielectric Strength	Not breakdown with 2kV DC for 1 min
Sheath Strength	Not breakdown with 3kV
Characteristic Resistance	75Ω ± 5Ω
Insulation Resistance	5000MΩ/km
Elongation at Break (Wire)	≥15%
Elongation at Break (Sheath)	≥150%
Low Temperature Bending	Not cracked
Thermal Shock	Not cracked
Operating Temperature	–20°C to +60°C (–4°F to 140°F)
Storage Temperature	–10°C to +40°C (14°F to 104°F)



Certifications and Standards

Certification	CPR Eca
Executive Standards	Q/DXJ 194-2020



Technical Test [Attenuation @68°F(20°C)]

Frequency(MHZ)	Maximum(dB/100ft)	Maximum(dB/100m)
5	0.47	1.54
55	1.25	4.1
211	2.36	7.74
250	2.56	8.4
270	2.68	8.78
300	2.82	9.25
330	2.96	9.72
350	3.05	10.01
400	3.27	10.73
450	3.46	11.35
500	3.67	12.04
550	3.85	12.63
600	4.05	13.28
1000	5.32	17.45
1200	5.87	19.23
1750	7.05	23.10
2150	7.79	25.54
