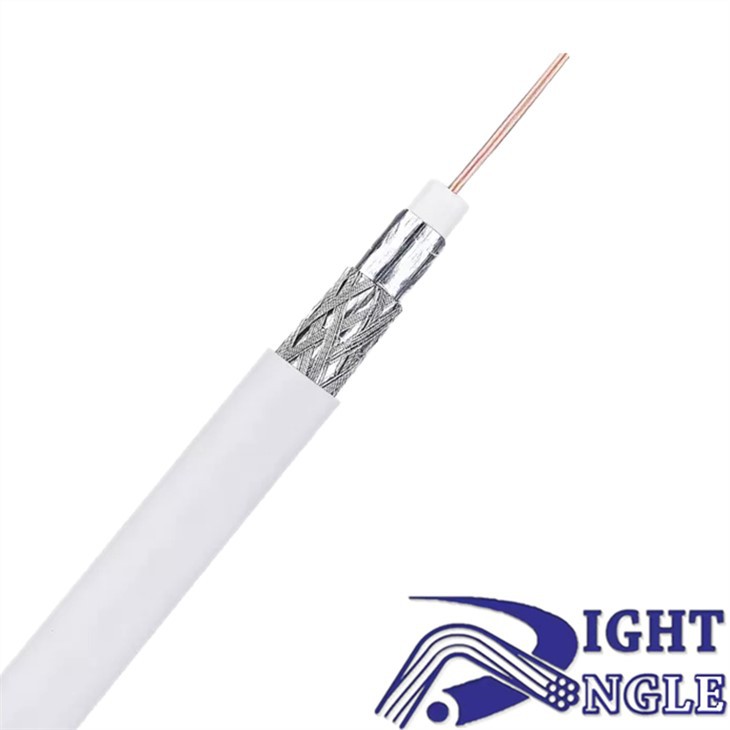

Name: RG6 Coaxial Cable
Brand: Right Angle
SKU: 172394565

RG-6 is one of the 75 ohm series cables, which is insulated by physical foamed polyethylene. It has the characteristics of good high-frequency performance, low attenuation, good consistency, small bending radius, not easy to be affected by moisture, stable structural performance and long service life. It is widely used in cable TV trunk line, branch line, subscriber line and other electronic devices.

Rg6 purpose: for communication and signal control system Hangzhou right angle Cable Technology Co., Ltd. can produce according to the user's specific specifications or general standards.

RG6 is a kind of communication weak point cable used in CATV. We can manufacture RG6 coaxial cable with CCS conductor, or replace the inner conductor with pure copper, CCA and CCAM. Some customers don't like CCS conductor. They prefer RG coaxial cable with CCA inner conductor manufactured by Hangzhou right angle Cable Technology Co., Ltd., but in fact, sometimes, if CCA is too thin, the conductor is easy to break, resulting in RG coaxial cable failure. At this time, we consider replacing CCA conductor with CCAM inner conductor. CCAM has stronger toughness than CCA.

Hangzhou right angle Cable Technology Co., Ltd. is a Chinese supplier that supplies RG6 coaxial cables to purchasers around the world with a production capacity of 400km every day. If you are also interested in Hangzhou right angle Cable Technology Co., Ltd., you can contact us on this website to talk to our customer service. It's not that you need to buy it before you can contact us. If you don't buy it or don't need it for the time being, you can also keep in touch with our customer service and ask them for the current quotation. These are OK.

Construction

Conductor	Material	CCS
	Diameter	1.02mm ± 0.02 mm
	Wire Gauge	18 AWG
Insulation	Material	FPE
Insulation	Diameter Diameter	4.57 mm ± 0.2 mm
AL Foil	Construction	With Foil
	Material	AP
	Width	18 mm
	thickness	> 0.024 mm
	Overlap Rate	≥ 20%
Braid	Material	AL
	Diameterr	0.12 mm
	Braid Coverage	60% - 98%
Jacket	Material	PVC
Jacket	Diameter	7.0 mm ± 0.5 mm

Packing

Package length	100m / 300m / 500m
	Customized
Box type	Ordinary / Waterproof
	Customized optional

Test Data

Dielectric Strength	Not breakdown with 2kV DC for 1 min
Sheath Strength	Not breakdown with 3kV
Characteristic Resistance	75Ω ± 5Ω
Insulation Resistance	5000MΩ/km
Elongation at Break (Wire)	≥15%
Elongation at Break (Sheath)	≥150%
Low Temperature Bending	Not cracked
Thermal Shock	Not cracked
Operating Temperature	–20°C to +60°C (–4°F to 140°F)
Storage Temperature	–10°C to +40°C (14°F to 104°F)

Certifications and Standards

Certification	CPR Eca
Executive Standards	Q/DXJ 194-2020

Technical Test [Attenuation @68°F(20°C)]

Frequency(MHZ)	Maximum(dB/100ft)	Maximum(dB/100m)
5	0.58	1.90
55	1.60	5.25
187	2.85	9.35
300	3.55	11.64
450	4.40	14.43
600	5.10	16.73
750	5.65	18.54
865	6.10	20.01
1000	6.55	21.49
1450	7.98	26.16
1800	8.46	27.73
2250	10.38	34.03
3000	11.44	37.50
