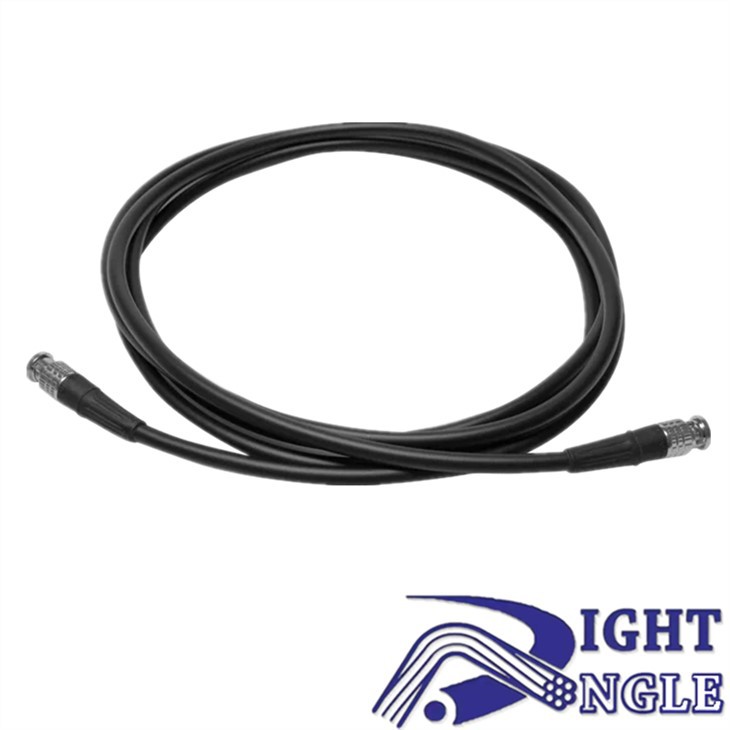

HD SDI Cable

Name: HD SDI Cable
Brand: Right Angle
SKU: 173460771

Description

HD-SDI cable can transmit high-definition digital video signal, ensuring the best effect of video signal. The bitrates of HD-SDI can reach 1.485mb/s, can transmit 720p video pictures, and even support 1080i video pictures. Construction Packing Test Data Certifications and Standards Technical...

Chat Now Send Inquiry

Specification Download

Product Details

Download specification

Inquiry

HD-SDI cable of Hangzhou right angle Cable Technology Co., Ltd. adopts high-purity oxygen free copper conductor and high-density oxygen free copper (OFC) braided shielding to effectively isolate electromagnetic interference, make the image clear and undistorted, and the signal transmission attenuation is small and the transmission rate is fast;

The outer cover is PVC sheathed, which has the characteristics of wear resistance, acid and alkali resistance, environmental protection and long service life. The interface adopts nickel plated and gold-plated BNC non-magnetic metal plug to effectively shield and protect the plug connection from external electromagnetic interference; Modular stress relief structure to prevent cable bending damage, easy to move flexibly and durable;

Precision processed BNC connection head and cable are integrated to completely resist all external noise interference, making the image more stable, clearer and brighter.

Construction

Conductor	Material	OFC
	Diameter	0.51 mm ± 0.02 mm
	Wire Gauge	24 AWG
Insulation	Material	FPE
Insulation	Diameter Diameter	3.0 mm ± 0.3 mm
AL Foil	Construction	With Foil
	Material	APG
	Width	12 mm
	thickness	> 0.024 mm
	Overlap Rate	≥ 30%
Braid	Material	OFC
	Diameterr	0.12 mm
	Braid Coverage	90% - 98%
Jacket	Material	PVC
Jacket	Diameter	5.0 mm ± 0.2 mm

Packing

Package length	10m / 30m / 50m
	Customized
Box type	Ordinary / Waterproof / Trolley
	Customized optional

Test Data

Dielectric Strength	Not breakdown with 2kV DC for 1 min
Sheath Strength	Not breakdown with 3kV
Characteristic Resistance	75Ω ± 5Ω
Insulation Resistance	5000MΩ/km
Elongation at Break (Wire)	≥15%
Elongation at Break (Sheath)	≥150%
Low Temperature Bending	Not cracked
Thermal Shock	Not cracked
Operating Temperature	–20°C to +60°C (–4°F to 140°F)
Storage Temperature	–10°C to +40°C (14°F to 104°F)
