FTP Cat6 Network Cable

FTP Cat6 Network Cable

Description

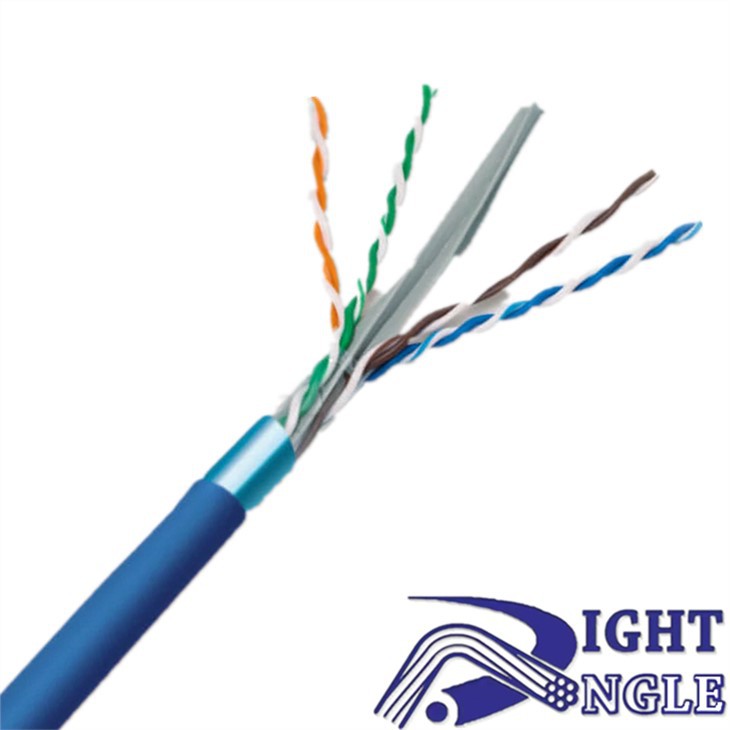

FTP CAN CABLE/FTP CAT6 Network Cable/FTP CAT6 Ethernet Cable is upgraded based on the UTP CAT6 cable. The aluminum foil shielding layer is added to ensure that it has a more stable signal transmission capacity. Reduce the echo loss and stringing, and it is suitable for the use of the stability...

Share:

Product Details

Download specification

Inquiry

Hello, welcome to visit my cat6 cable, our cable adopts pure copper conductor, has excellent signal transmission ability, adopts new PE insulation layer and new PVC sheath, the sheath has a smooth appearance without roughness. Each batch of our goods leaves the factory, there will be professional quality inspectors to test to ensure that the quality of the goods reaches the standard. We can provide customized service including cables and packaging, our MOQ is 30km.



If you have any other questions or need a quotation, please contact our sales staff, or leave your contact information and our staff will contact you as soon as possible to provide you with high-quality service.




FTPCat6 is a type of network cable that is designed for high-performance networking applications. The cable is made from high-quality components and is designed to provide reliable connectivity and fast data transfer rates. It is an essential component for any high-speed network, and it is used in a wide range of applications, from small home networks to large-scale enterprise networks.



The FTPCat6 network cable is made from twisted pair wiring, with four pairs of wires within the cable. The cable is wrapped in a sturdy outer sheath, which helps to protect against damage from everyday wear and tear. The cable is designed to provide excellent shielding against electromagnetic interference (EMI), which can cause signal interference and degradation.



One of the key benefits of using FTPCat6 network cable is its ability to support high-speed data transfer rates. The cable is capable of transmitting data at speeds of up to 10 gigabits per second (Gbps). This makes it ideal for use in applications where fast data transfer is essential, such as video streaming, online gaming, and high-speed file transfers.



Another advantage of FTPCat6 network cable is its ability to support long cable runs. The cable is designed to provide reliable connectivity over distances of up to 100 meters, making it suitable for use in large networks. The cable is also compatible with a range of different network devices, including routers, switches, and modems, which makes it easy to integrate into your existing network infrastructure.



FTPCat6 network cable is also designed to be easy to install and use. The cable is available in a range of different lengths, which makes it easy to find the right cable length to suit your needs. The cable is also color-coded, which makes it easy to identify the different wires and pairs within the cable, and to ensure that the cable is connected correctly.



Product Specification

Conductor

Material

BC ( Customized: CCA / CCC )

Diameter

0.57 mm ± 0.02 mm

Wire Gauge

23 AWG

Insulation

Material

HDPE

Diameter

1.02 mm ± 0.1 mm

Separator

Material

PE

Specification

4.5 mm ± 0.2mm

Thickness

0.4 mm ± 0.02mm

Rip Cord

Material

Polyester

Specification

500 D

Shield

Material

Foil

Overlap rate

≥ 10 %

Jacket

Material

PVC

(Customized optional: PE/PVC+PE/LSZH)

Diameter

6.1 mm ± 0.3 mm



Packing

Single package

Easy pull box

Package length

305m (Optional custom length)

Outer package

Carton box (2×Easy pull box)

Waterproof packaging

Optional



Test Data

Tensile Strength

Sheath≥13.5 MPa, insulation≥16 MPa

Elongation at Break

Sheath≥150%, insulation≥300%

Installation Bending Radius

>8 times of outer cable diameter

Conductor Elongation at Break

≥10%

Shrinkage of Insulation

≤5%

Low Temperature Bending Test

No cracking

Heat Shock Test

No cracking

Operating Temperature

–20°C to +60°C (–4°F to 140°F)

Storage Temperature Humidity

–10°C to +40°C (14°F to 104°F), <60% (RH)



Certifications and Standards

Vertical Fire Propagation Test

Comply with IEC 60332-1-2

Certification

CPR Eca

Executive Standards

Q/DXJ 067-2019, EN50575-2014
