UTP Cat5 Network Cable

UTP Cat5 Network Cable is a form of network cabling used to connect different devices within a local area network (LAN). The acronym UTP stands for Unshielded Twisted Pair while Cat5 refers to its category specification. The Cat5 specification specifies the requirements and capabilities of the cable, such as maximum transmission speeds and attenuation levels.

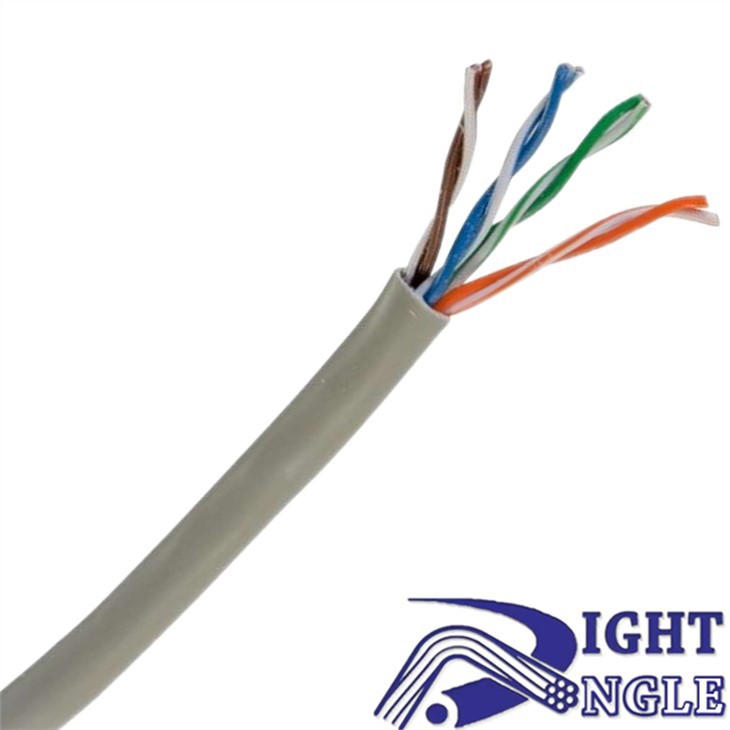

The UTP Cat5 Network Cable consists of four twisted pairs of copper wires enclosed in an insulating material. The twisting of the copper wires helps in minimizing interference from other nearby cables, thus reducing the chances of data loss or corruption. The use of unshielded twisted pairs also makes the UTP Cat5 Network Cable less expensive than other cable types.



UTP Cat5 Network Cables are commonly used for Ethernet networking applications and are suitable for transmitting data signals up to 100Mbps. They are typically used in office and home environments to make wired network connections between computers, routers, servers, and other network devices.



One of the advantages of UTP Cat5 Network Cables is their flexibility in terms of distance. They can be deployed over long distances without losing their performance capabilities. UTP Cat5 Network Cables can be run through walls, ceilings and floors, making them ideal for hiding wires and keeping a clean look. The cables can be laid as long as 100 meters without experiencing any significant loss of signal quality.



Another advantage of UTP Cat5 Network Cables is their compatibility with other cable types and network components. UTP Cat5 cables can be used with RJ-45 connectors, which are commonly used with Ethernet connections. They can also be used with switches, routers, and other Ethernet networking hardware.



UTP Cat5 Network Cables are also easy to install and maintain. They do not require any special tools or expertise to install and can be easily replaced or upgraded. If the cable becomes damaged or needs to be replaced, it can be easily removed and replaced without causing any disruption to the network.

The disadvantages of UTP Cat5 Network Cables include their susceptibility to interference. While the twisting of the wires helps minimize interference, the cables can still be affected by electromagnetic interference (EMI) and radio frequency interference (RFI). If a UTP Cat5 Network Cable is run parallel to an electrical cable or other source of interference, the quality of the signal could be affected.



Another disadvantage of UTP Cat5 Network Cables is their limited bandwidth. The Cat5 specification allows for a maximum transmission speed of 100Mbps, which is not sufficient for some high-demand applications. For example, video streaming or online gaming requires much higher bandwidth than what a Cat5 cable can offer.



Product parameters:

1. New flame retardant and environment-friendly PE material / PVC material, conforming to ROHS standard

2. Extremely tensile (PE insulation) layer, full of toughness

3. The line code is accurate! If the number of meters is not enough, one will lose ten!

4. The ultra long effective and stable transmission distance reaches 150-180 meters, and the manufacturer measured (stable transmission distance above 150 meters) 5.8-core 99.9% pure copper wire diameter



The factory's products are made of low-density polyethylene with good softness and smoothness (super waterproof, anti-corrosion and tensile performance). They are made of materials without recycled impurities, 99.9% pure copper, oxygen free copper, copper clad copper and miscellaneous copper! After receiving the goods, customers can inspect the goods in person immediately. The wire diameter is 300 meters



Hangzhou right angle Cable Technology Co., Ltd. can OEM production! Sample production! Undertake orders of various specifications and special models: network power integrated cable / network cable / monitoring video cable / power cable / audio cable / twisted pair / large logarithm, etc



Product Specification

Conductor	Material	BC (Customized: CCA /CCC)
	Diameter	0.51 mm ± 0.02 mm
	Wire Gauge	24 AWG
Insulation	Material	HDPE
	Diameter	0.92 mm ± 0.1 mm
Rip Cord	Material	Polyester
	Specification	500 D
Jacket	Material	PVC (Customized: PE/PVC+PE/LSZH)
	Diameter	5.0 mm ± 0.3 mm



Packing

Single package	Easy pull box
Package length	305m (Optional custom length)
Outer package	Carton box (2×Easy pull box)
Waterproof packaging	Optional



Test Data

Tensile Strength	Sheath≥13.5 MPa, insulation≥16 MPa
Elongation at Break	Sheath≥150%, insulation≥300%
Installation Bending Radius	> 8 times of outer cable diameter
Conductor Elongation at Break	≥10%
Shrinkage of Insulation	≤5%
Low Temperature Bending Test	No cracking
Heat Shock Test	No cracking
Operating Temperature	–20°C to +60°C (–4°F to 140°F)
Storage Temperature Humidity	–10°C to +40°C (14°F to 104°F), <60% (RH)



Certifications and Standards

Vertical Fire Propagation Test	Comply with IEC 60332-1-2
Certification	CPR Eca
Executive Standards	Q/DXJ 067-2019, EN50575-2014
