RG59 with Power Cable

Name: RG59 with Power Cable
Brand: Right Angle
SKU: 173470584

Description

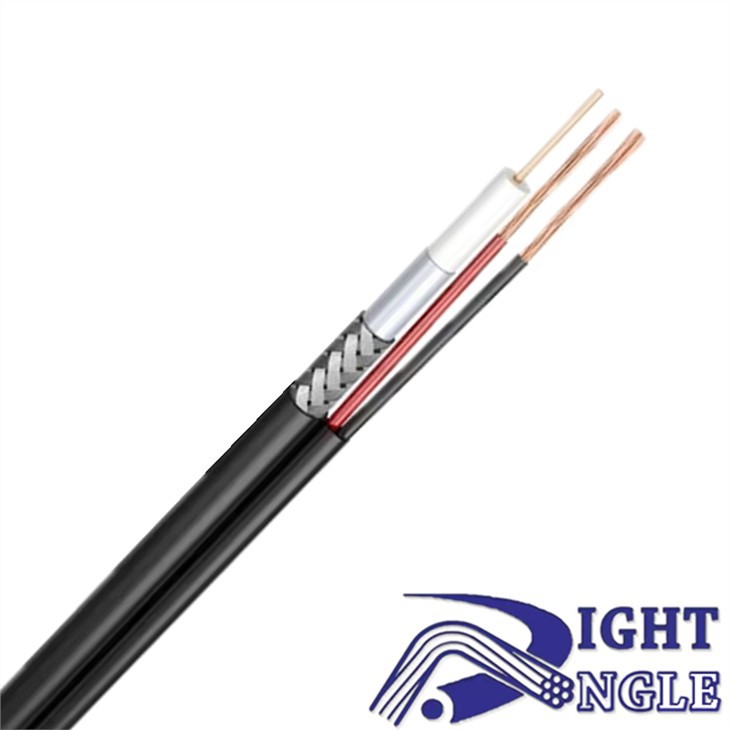

RG59 with power CCTV cable is used for the data transmission and function of CCTV camera. The addition of power cord on the basis of RG59 coaxial cable will reduce the repeated wiring steps when installing CCTV camera, optimize the installation method and improve the installation efficiency....

Chat Now Send Inquiry

Specification Download

Product Details

Download specification

Inquiry

The RG59 with power CCTV cable is one of the best-selling communication cables of our ract. It is widely used in CCTV camera security system. RG59 cable with power often appears in the production workshop of our factory, because buyers and CCTV camera installation users all over the world need it to transmit video pictures and power CCTV camera. Hangzhou right angle Cable Technology Co., Ltd. has the richest production experience in modified products.

You have two options: (1) buy our rightangle brand RG59 cable with power (2) Tell us your needs, we will produce for you, and post your brand on the box and wooden drum. We have a variety of OEM customization schemes, such as wooden drum, plastic plate or hollow roll for packaging? Spray white words or black words on the cable? We can also provide you with a variety of brand design schemes for your choice. Until you are satisfied with your brand design.

If the distance between the camera and the monitoring host (image processor, matrix control host or digital video recorder) is less than 200m, RG59 video line can be used. If it is more than 200m, swy-75-5 video line should be used to ensure the quality of monitoring image. For the camera installed in the elevator, the wiring in the elevator shaft shall be galvanized iron trough and grounded to reduce the interference to the video signal caused by the start of the elevator motor.

If the camera is installed outdoors (such as the entrance of the courtyard or parking lot), the line needs to be wired outdoors or through overhead steel cable. If conditions permit, video arrester shall be installed (because the installation of lightning protection equipment will increase the total project cost), that is, one video arrester shall be installed at the camera end and the monitoring host end respectively, Moreover, each video arrester shall be grounded (the outdoor camera shall be grounded separately, and the video arrester in the monitoring room can be grounded uniformly) to prevent damage to the equipment caused by induced lightning.

Construction

Conductor	Material	CCS
	Diameter	0.81mm ± 0.02 mm
	Wire Gauge	20 AWG
Insulation	Material	FPE
Insulation	Diameter Diameter	3.66 mm ± 0.2 mm
AL Foil	Construction	With Foil
	Material	APG
	Width	14 mm
	thickness	> 0.024 mm
	Overlap Rate	≥ 20%
Braid	Material	CCA
	Diameterr	0.12 mm
	Braid Coverage	60% - 98%
Jacket	Material	PVC
Jacket	Diameter	6.1 mm ± 0.3 mm
Power Conductor	Material	CCA
Power Conductor	Diameter	7 x ( 0.3mm ± 0.02 mm )
Power Jacket	Material	PVC
Power Jacket	Diameter	3.2 mm ± 0.3 mm

Packing

Package length	100m / 300m / 500m
	Customized
Box type	Ordinary / Waterproof
	Customized optional

Test Data

Dielectric Strength	Not breakdown with 2kV DC for 1 min
Sheath Strength	Not breakdown with 3kV
Characteristic Resistance	75Ω ± 5Ω
Insulation Resistance	5000MΩ/km
Elongation at Break (Wire)	≥15%
Elongation at Break (Sheath)	≥150%
Low Temperature Bending	Not cracked
Thermal Shock	Not cracked
Operating Temperature	–20°C to +60°C (–4°F to 140°F)
Storage Temperature	–10°C to +40°C (14°F to 104°F)

Certifications and Standards

Certification	CPR Eca
Executive Standards	Q/DXJ 194-2020

Technical Test [Attenuation @68°F(20°C)]

Frequency(MHZ)	Maximum(dB/100ft)	Maximum(dB/100m)
5	0.86	2.82
55	2.05	6.73
187	3.60	11.81
300	4.45	14.60
450	5.40	17.72
600	6.20	20.34
750	6.98	22.87
865	7.52	24.67
1000	8.13	26.64
1200	8.97	29.40
1450	9.89	32.41
1800	11.81	38.72
3000	14.30	46.90
