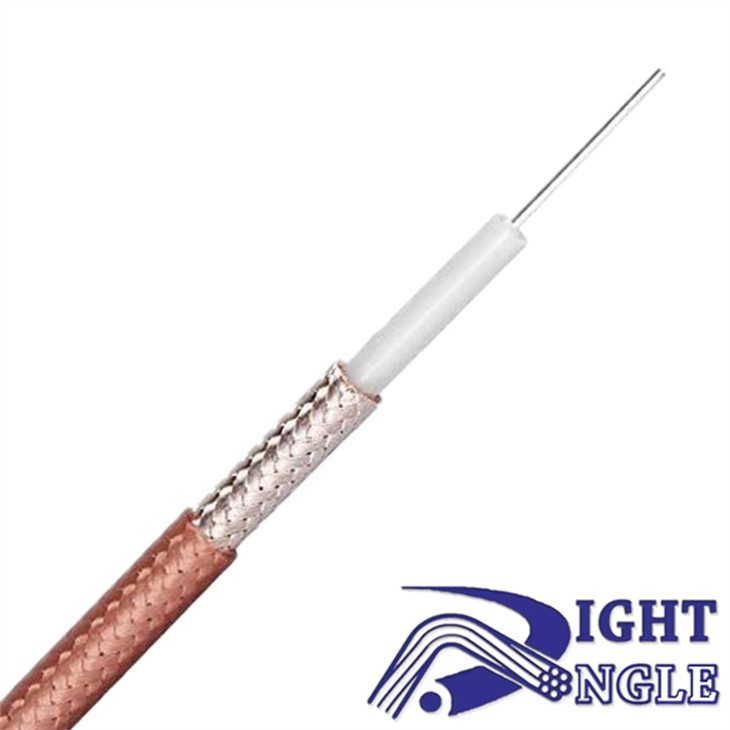

RG142 Coaxial Cable

RG142 Coaxial Cable

Description

Rg142 coaxial cable meets the standard: M17 / 60-rg142, maximum working frequency: dc-6ghz, rg142 high-temperature coaxial cable is used for interconnection between telecommunication equipment and is widely used in commercial wireless applications. The specific applications of rg142 include...

Share:

Product Details

Download specification

Inquiry

Rg142 coaxial cable meets the standard: M17 / 60-rg142, maximum working frequency: dc-6ghz, rg142 high-temperature coaxial cable is used for interconnection between telecommunication equipment and is widely used in commercial wireless applications. The specific applications of rg142 include radar, GPS and medical system. Rg142 can be directly buried and can maintain good shielding effect when complex underground connection is realized



Hangzhou right angle Cable Technology Co., Ltd.: our factory has a strong delivery capacity. We can manufacture more than 400km communication cables every day. We have several devices that can work 7 * 24 to provide customers with the fastest and best quality communication cables. Our RG6 coaxial cable and CCTV camera have been sold all over the world.



Since its establishment, our company has frequently participated in exhibitions, offline exhibitions and online cables all over the world. We know more buyers from exhibitions. We have regular buyers in China. We are partners with Hikvision. We have cooperated with Dahua for many years.



If the customer is a foreign country, we will transport a large number of cable products by ship and plane. We support sending samples, we support OEM customized products, and even customize packaging patterns and wooden disk logo for customers, so as to help buyers complete the best expansion in the local market.



Construction

Conductor

Material

SCCS

Diameter

0.95 mm ± 0.02 mm

Wire Gauge

19 AWG

Insulation

Material

PTFE

Diameter Diameter

2.95 mm ± 0.2 mm

AL Foil

Construction

With Foil

Material

APG (Customized optional: GAPG/BAPG)

Width

12 mm

thickness

> 0.024 mm

Overlap Rate

≥ 20%

Braid

Material

SPC

Braid Coverage

60% - 98%

Jacket

Material

FEP

Diameter

4.95 mm ± 0.3 mm



Packing

Package length

100m / 300m / 500m

Customized

Box type

Ordinary / Waterproof

Customized optional



Test Data

Capacitance

95 pF/m. max

Maximum voltage

5000 Volts

Velocity of propagation

69 %

Operating Frequency

8 GHz

Screening effectiveness

≥ 85 dB (up to 6 GHz)

Insulation resistance

≥ 1 x 108 MΩm

Max. operating voltage

≤ 2.5 kVrms (at sea level)

Characteristic Resistance

50Ω ± 2Ω

Elongation at Break (Wire)

≥15%

Elongation at Break (Sheath)

≥150%

Low Temperature Bending

Not cracked

Thermal Shock

Not cracked

Operating Temperature

–20°C to +60°C (–4°F to 140°F)

Storage Temperature

–10°C to +40°C (14°F to 104°F)



Technical Test [Attenuation @68°F(20°C)]

Frequency(MHZ)

Maximum(dB/100ft)

Maximum(dB/100m)

10

1.2

3.9

30

2.1

6.9

50

2.7

8.6

100

4

13

400

8

26

1000

13

43

1500

16

52

2000

19

62

2500

21

68

3000

24

78

5000

32

104
