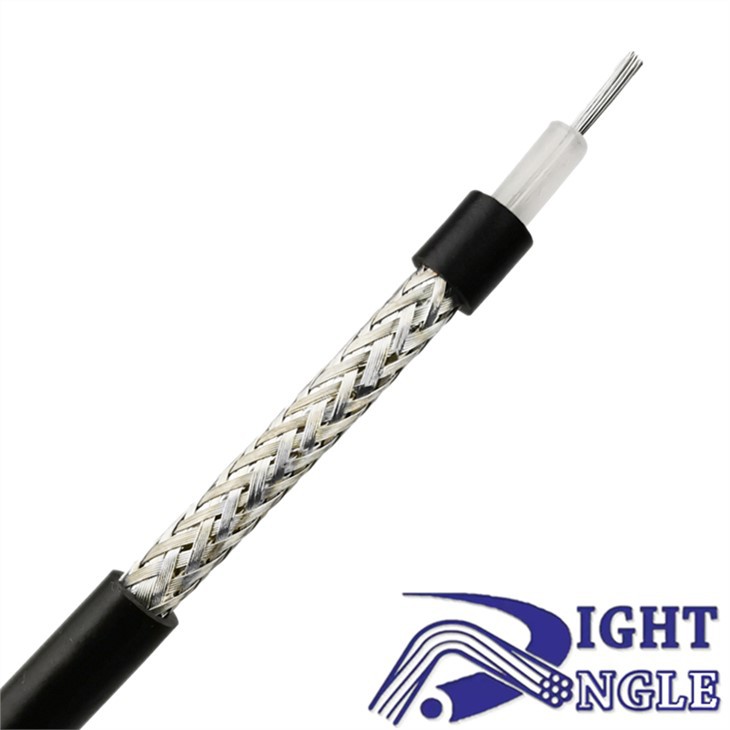

RG174 Coaxial Cable

RG174 Coaxial Cable

Description

RG174 coaxial cable meets the standard: M17 / 119-rg174, maximum working frequency: dc-1ghz. RG174 / u is used to provide high-speed and high-precision data transmission. Common applications include security system, computer network, access control and home automation applications. Rg-174...

Share:

Product Details

Download specification

Inquiry

RG174 coaxial cable meets the standard: M17 / 119-rg174, maximum working frequency: dc-1ghz. RG174 / u is used to provide high-speed and high-precision data transmission. Common applications include security system, computer network, access control and home automation applications. Rg-174 coaxial cable is often used to connect wireless equipment and antenna in wireless network, and is also often used in automobile harness



The RG174 coaxial cable of Hangzhou right angle Cable Technology Co., Ltd. can use tinned copper as the conductor or CCS as the conductor of RG174. In the case of standard cables, if professional customers require special customization, Hangzhou right angle Cable Technology Co., Ltd. can also complete exclusive customized manufacturing.



We can customize RG174 packaging carton and carton design for you. The customized size design of the wooden plate and the logo on the side of the wooden plate are customized. You can print the words on the RG174 cable, your company name and your brand name. We also support production video inspection, so that you can see our production video on your mobile phone and computer and understand the process and method of our production for you. This is the powerful custom OEM capability of Hangzhou right angle Cable Technology Co., Ltd. Let you know your order deeply and let you know what we are doing.



Interested? Come and consult our salesperson. All this is free. We guarantee that you will get the best shopping experience. Our friendly salesperson is waiting for you to provide you with the best and gentlest service. Help you understand all processes from order consultation, order placement, order quality inspection and order delivery.

Have you ever bought a communication cable in China? Didn't you buy it? It doesn't matter. We will provide all-round help. Don't hesitate to contact our salesperson immediately. WhatsApp + 8615613343698, wechat + 8615613343698, Skype is ract999



we specialize in the production of communication cable products such as coaxialcables, coaxial monitoring cables, network cables, and IP camera cables. We alsosupport OEM and ODM high-end customized services. ourcompany has passedIso9001 quality management system certification, EU access CE certification, andour products have been exported to more than 50 countries and regions on sixcontinents. Among them, they are mainly sold to the Middle East, Southeast Asia,South America and other countries and regions.



Construction

Conductor

Material

TC (Customized optional: CCS)

Diameter

7 × ( 0.16 mm ± 0.02 mm )

Wire Gauge

24.5 AWG

Insulation

Material

SPE

Diameter Diameter

1.55 mm ± 0.1 mm

AL Foil

Construction

With Foil

Material

AP (Customized optional: APA/BAP)

Width

6 mm

thickness

> 0.024 mm

Overlap Rate

≥ 18%

Braid

Material

TC (Customized optional: AL )

Braid Coverage

60% - 98%

Jacket

Material

PVC

(Customized optional: PE/PVC+PE/LSZH)

Diameter

2.8 mm ± 0.3 mm



Packing

Package length

100m / 300m / 500m

Customized

Box type

Ordinary / Waterproof

Customized optional



Test Data

Operating Frequency

6 GHz

Velocity of propagation

66 %

Screening effectiveness

≥ 40 dB (up to 1 GHz)

Max. operating voltage

≤ 0.85 kVrms (at sea level)

Capacitance

101 pF/m. max

Insulation resistance

≥ 1 x 10^8 MΩm

Characteristic Resistance

50Ω ± 2Ω

Elongation at Break (Wire)

≥15%

Elongation at Break (Sheath)

≥150%

Low Temperature Bending

Not cracked

Thermal Shock

Not cracked

Operating Temperature

–20°C to +60°C (–4°F to 140°F)

Storage Temperature

–10°C to +40°C (14°F to 104°F)



Technical Test [Attenuation @68°F(20°C)]

Frequency(MHZ)

Maximum(dB/100ft)

Maximum(dB/100m)

5

2

5

10

2

7

30

4

12

50

5

16

150

9

28

220

10

34

450

15

50

900

22

72

1500

29

94

1800

32

104

2000

34

110

2500

38

124

3000

42

139

3500

45

149

4500

52

172

5800

61

200

6000

62

203



product-764-4217
