Description
G213 coaxial cable is suitable for VHF (very high frequency) and UHF (ultra high frequency) radio communication, data transmission and broadcasting applications. Rg213 coaxial cable is also suitable for antenna feeders when low signal loss and high operating voltage are required. RG213 uses...
Share:
G213 coaxial cable is suitable for VHF (very high frequency) and UHF (ultra high frequency) radio communication, data transmission and broadcasting applications. Rg213 coaxial cable is also suitable for antenna feeders when low signal loss and high operating voltage are required.

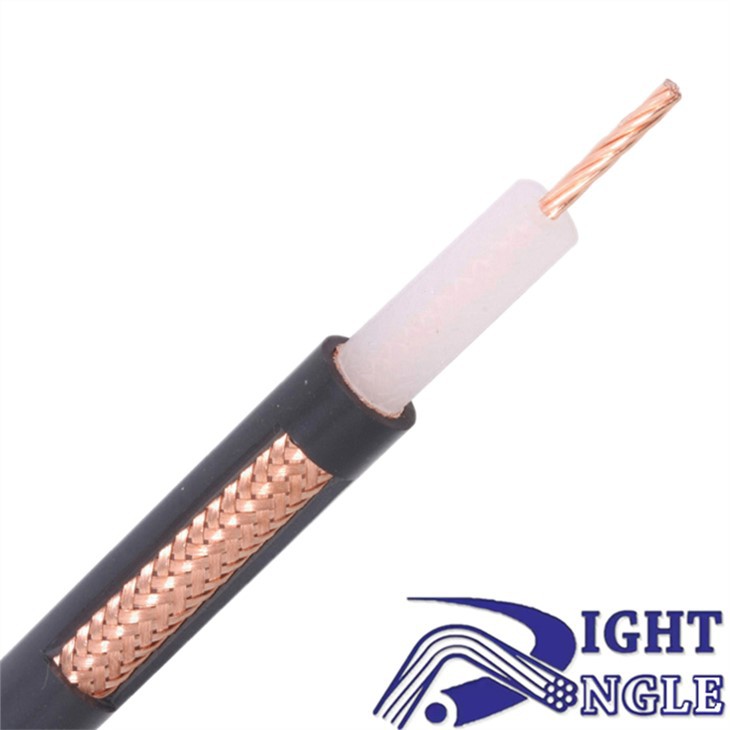

RG213 uses stranded bare copper center conductor, solid polyethylene dielectric, single 95% bare copper braid and pollution-free PVC (NCV) sheath conforming to mil-c-17 standard.
The PE insulation material of the product is spe. Compared with FPE, FPE is produced by blowing nitrogen, while SPE is solid. Solid SPE insulation can better protect 7 × (0.752 mm ± 0.02 mm) inner conductor shall not break. The inner conductor and SPE are only bonded together to protect the pure copper inner conductor. This is a traditional, safe and stable manufacturing process.
Our website has WhatsApp and wechat contact information, if you are interested in this product. Of course, if you are interested in any product of our website, you can consult our professional customer service, and we will provide you with the best service. Offer for you and introduce you to more product details. Including all questions, can be solved for you.
Our company has been established for more than ten years. Our predecessors, including the current Hangzhou right angle Cable Technology Co., Ltd., are all together. We provide communication cables, CCTV camera cable, IP camera cable, coaxial RG59, network CAT5e, network CAT6 and other communication cables. Please keep them at all times. This is our most sincere personal introduction.
Construction
|
Conductor |
Material |
BC |
|
Diameter |
7 × ( 0.752 mm ± 0.02 mm ) |
|
|
Wire Gauge |
13 AWG |
|
|
Insulation |
Material |
SPE |
|
Diameter |
7.25 mm ± 0.1 mm |
|
|
Braid |
Material |
CU (Customized optional: CCA ) |
|
Braid Coverage |
60% - 98% |
|
|
Jacket |
Material |
PVC (Customized optional: PE/PVC+PE/LSZH) |
|
Diameter |
10.3 mm ± 0.3 mm |
Packing
|
Package length |
100m / 300m / 500m |
|
Customized |
|
|
Box type |
Ordinary / Waterproof |
|
Customized optional |
Test Data
|
Operating Frequency |
1 GHz |
|
Velocity of propagation |
66 % |
|
Screening effectiveness |
≥ 40 dB (up to 1 GHz) |
|
Max. operating voltage |
≤ 0.85 kVrms (at sea level) |
|
Capacitance |
101 pF/m. max |
|
Insulation resistance |
≥ 1 x 10^8 MΩm |
|
Characteristic Resistance |
50Ω ± 2Ω |
|
Elongation at Break (Wire) |
≥15% |
|
Elongation at Break (Sheath) |
≥150% |
|
Low Temperature Bending |
Not cracked |
|
Thermal Shock |
Not cracked |
|
Operating Temperature |
–20°C to +60°C (–4°F to 140°F) |
|
Storage Temperature |
–10°C to +40°C (14°F to 104°F) |
Technical Test [Attenuation @68°F(20°C)]
|
Frequency(MHZ) |
Maximum(dB/100ft) |
Maximum(dB/100m) |
|
1 |
0.2 |
0.7 |
|
10 |
0.6 |
2.0 |
|
50 |
1.6 |
5.2 |
|
100 |
2.2 |
7.2 |
|
200 |
3.3 |
10.8 |
|
400 |
4.8 |
15.7 |
|
700 |
6.6 |
21.6 |
|
900 |
7.7 |
25.3 |
|
1000 |
8.3 |
27.2 |
